VCM

Vinyl Coated Metal

VCM Image

The VCM(vinyl Coated Metal) is a pre-painted steel sheet that PVC films with diverse patterns and colors are attached to the steel sheet and high-end elegant texture can be expressed.
Since it is equipped with excellent processability, durability and excellent corrosion resistance and rust resistance extensively, it is used as a steel sheet for home appliances such as a refrigerator, a washing machine, an air-conditioner etc.

  • Product Information
  •
  • Features of Product Icon

    Features of Product

  • VCM Image2

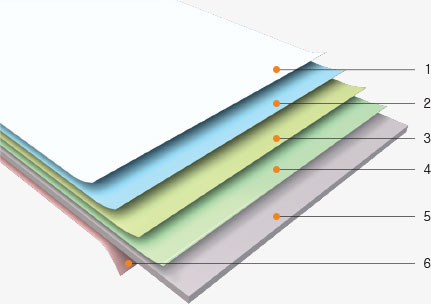

    NO Structure Material Thickness
    1 PROTECTIVE FILM POLYETHYLENE 50~60㎛
    2 FILM PVC 25~150㎛
    3 ADHESIVE LAYER ACRYL 5㎛
    4 PRE TREATMENT CHROMATE 1㎛
    5 BASE METAL EGI, CR, GI, AL 0.20~0.8T
    6 BACK COATING EPOXY 5㎛
